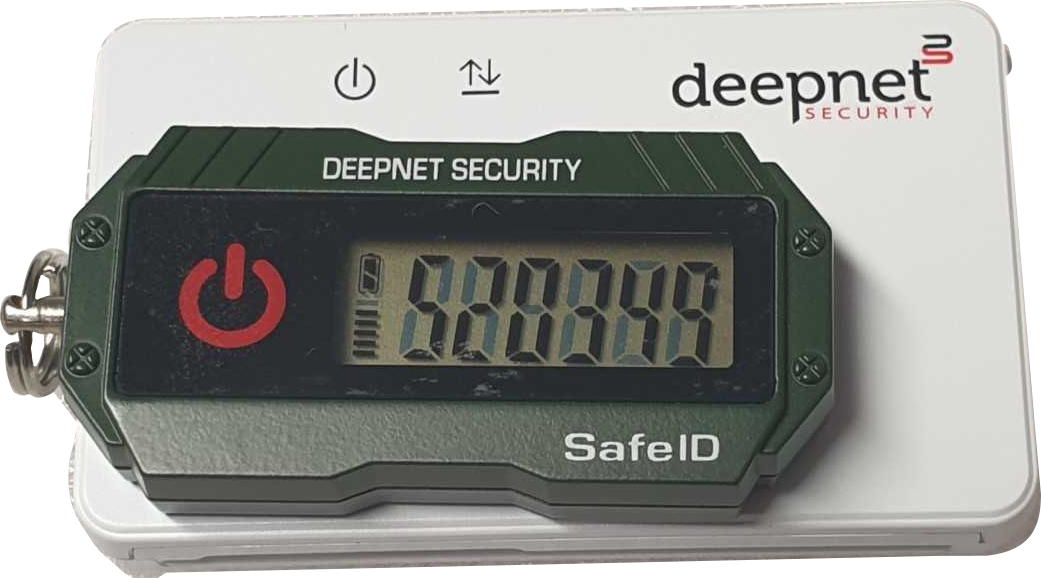

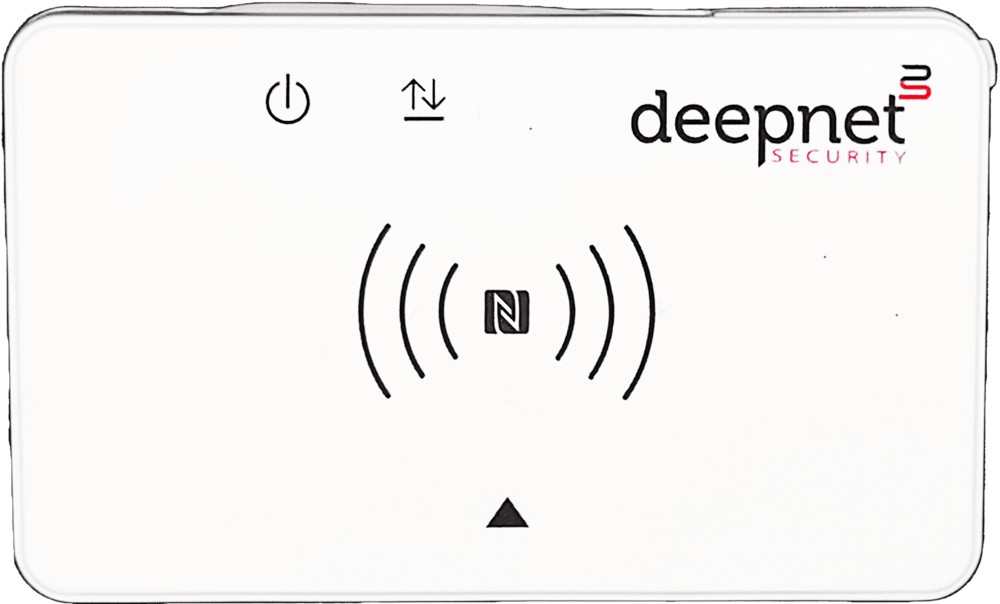

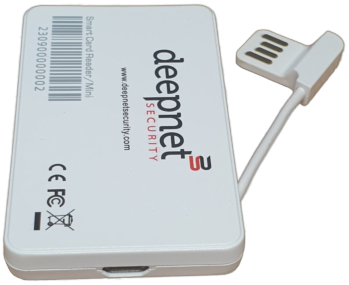

Smartcard Reader (Mini)

NFC Reader

The Deepnet Security's Smartcard Reader (Mini) is a dual-interface reader that supports with both contact and contactless smartcards. It is a portal device as it is very small in size.

It is suitable for applications with IC card operation and high-security requirements such as finance, electronic payment, network security, identity authentication, e-commerce and e-government etc.>

Key Features

  • Near Field Communication (NFC)
  • USB 2.0 full speed interface
  • PC/SC and CCID compatible
  • Supports ISO 7816 Class A, B, C cards
  • Supports ISO 14443 Type A and Type B cards


Size 49.8mm x 26mm x 8.25 mm
Weight 15g
Connection NFC, USB A, Micro USB
Protocol PC/SC, CCID
Stardard ISO 7816 Class A/B/C, ISO 14443 Type A/B

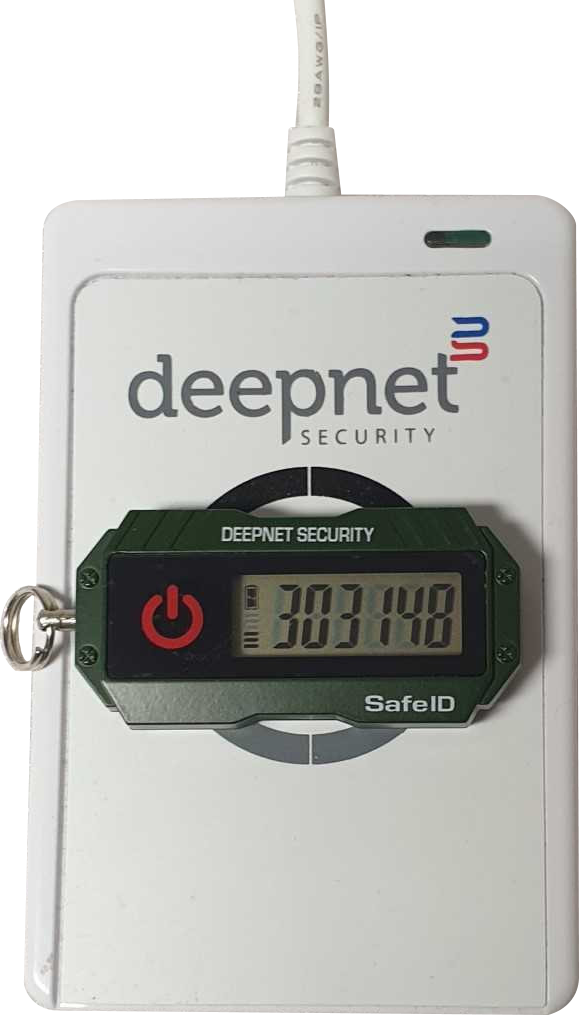

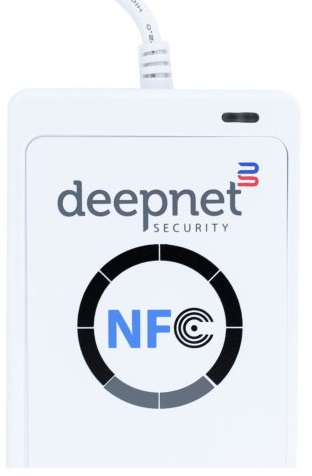

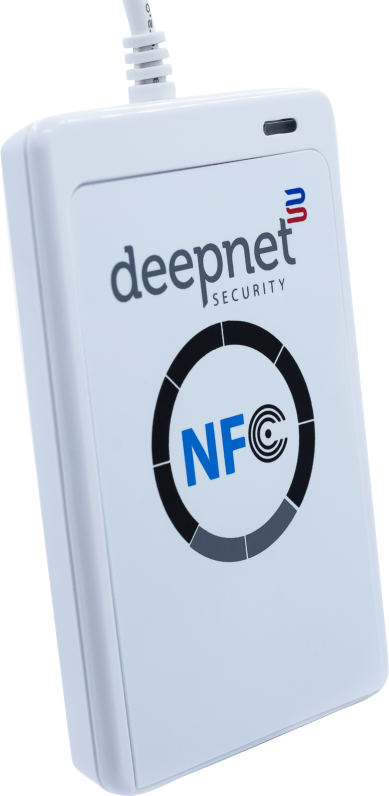

Smartcard Reader (Pro)

NFC Reader

The Deepnet Security's Smartcard NFC Reader (Pro) is a PC-linked contactless smart card reader/writer developed based on 13.56 MHz contactless (RFID) technology. Compliant with the ISO/IEC 18092 standard for Near Field Communication (NFC), it supports not only MIFARE and ISO 14443 A and B cards, but also all four types of NFC tags.

The NFC reader supports both CCID and PC/SC programming interface. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, the NFC reader can also read and write more quickly and efficiently. The proximity operating distance of the reader is up to 5 cm, depending on the type of contactless tag in use.


Size 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Weight 70g
Size 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Inteface PC/SC, CCID
Protocol ISO 14443 contactless cards (RFID)
ISO 18092 NFC cards
MIFARE Classic and Desfire proximity cards
